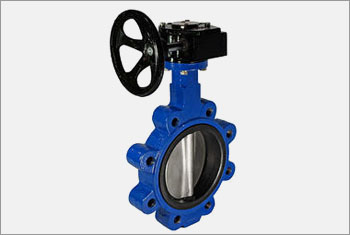

Gear Operated Butterfly Valves

Product Overview

We are supplier & exporter of wide range High Performance Gear Operated Butterfly Valves. These are in various shapes and sizes which help in meeting the variegated demands of our customers in efficient manner.

Technical Specifications

Size
øA
B
C
øD
E
F
øH
DN 250
324
68
189
247
248
310
140
DN 300
374
78
215
297
280
360
140
DN 350
440
92
267
341
320
397
153
DN 400
491
106
291
389
344
429
155
DN 450
540
115
344
439
400
485
175
DN 500
595
126
368
489
430
520
175
DN 600
695
154
410
584.5
490
368
225
DN 700
774
167
471
688
566
714
305

Advantages

  • It has best control characteristics.
  • Tight shut-off even after innumerable operations.
  • It has 90 movement for full open/close position.
  • It has less installation cost due to very low weight and compact design.
  • There is no routine maintenance required.
  • It has longer life and reliable service with minimum component wear.
  • It has Longer life and reliable service with minimum component wear.
  • There is no supplementary gasket required with the adjacent pipework.
  • In this body & stem totally protected from service fluid.
  • It has centrally mounted disc, shafts and bearings, hence these valves give higher CV values.
