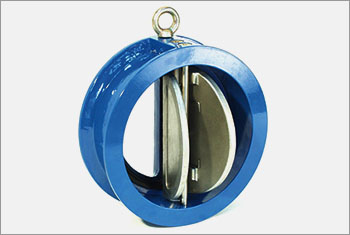

Wafer Type Check Valves

Product Overview

We are supplier & exporter of wide range High Performance Wafer Type Check Valves. These are in various shapes and sizes which help in meeting the variegated demands of our customers in efficient manner.

Technical Specifications

Size
A
B
C
DN 25
63
15
15
DN 32
72
18
15
DN 40
81
22
16
DN 50
97
28
18
DN 65
117
41
18
DN 80
128
52
18
DN 100
168
76
20
DN 125
190
100
20
DN 150
216
122
22
DN 200
272
158
26
DN 250
333
203
28
DN 300
403
248
32
DN 400
509
326
45
DN 450
543
374
45
DN 500
600
423
50
DN 600
711
518
64
DN 700
826
612
70

Design Specifications

  • It is simple but robust construction with reliability.
  • It has Pressure rating - PN - 10, PN - 16.
  • It has range between - DN - 25 to DN - 700
  • It has 100% tight shut - off.
  • It has overall short length so required less space.
  • It is suitable for flange standards - BS, ANSI, IS, API etc.
  • Material - M. S. / CS / CF8 / CF8M
  • 0 rings - Nitrile / EPOM / Viton / Silicon / PTFE.
